Iscar

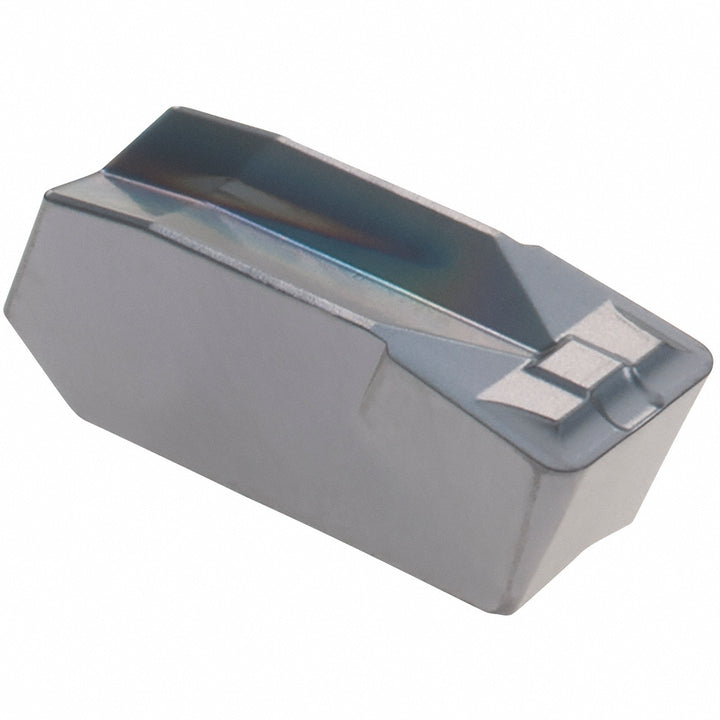

ISO 13399 Solid Carbide Insert, Grade IC907, TiAlN - Iscar 6491257
MFR# 6491257ISO/ANSI# ISO 13399Series Cut Grip
$22.49List $28.80
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC907
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6491257 is a ISO 13399 solid carbide indexable insert, grade IC907, TiAlN coated. Suited for universal.
Specifications
Chip breakerN
Coating finishTiAlN
Coating processPVD
Corner radius0.0315
Cutting width0.2362
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size608
Insert size code608
Insert styleGIMN
Iso codeISO 13399
Manufacturer gradeIC907
Material gradeSubmicron
Maximum depth of cut0.0945
Maximum depth of cut range0.0750 to 0.1000
Multi use toolYes
Overall length0.6024
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endSingle
StandardsISO 13399
