Iscar

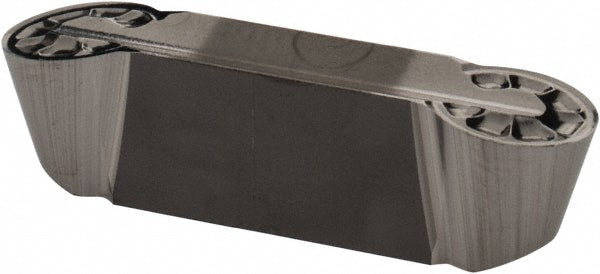

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 6491379
MFR# 6491379ISO/ANSI# ISO 13399Series Cut-Grip
$42.16List $54.00
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialSolid Carbide
Description
The Iscar 6491379 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerY
Corner radius0.1575
Cutting width0.3150
Full radiusYes
Insert handNeutral
Insert materialSolid Carbide
Insert size8040
Insert size code8040YZ
Insert styleGIDA
Iso codeISO 13399
Manufacturer gradeIC20
Material gradeC2; C3
Maximum depth of cut0.1575
Maximum depth of cut range0.1500 to 0.2000
Msc manufacturer numberGIDA 80-40YZ
Multi use toolNo
Overall length1.1811
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
