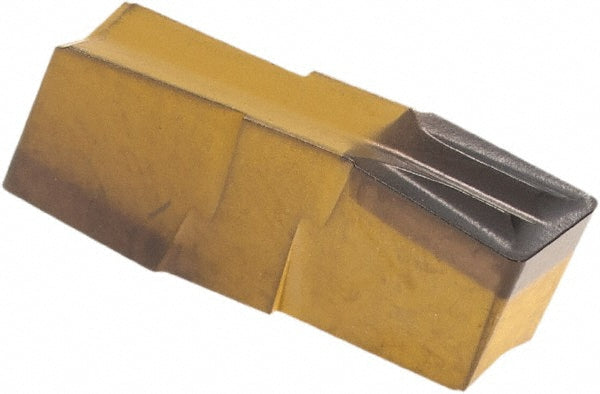

ISO 13399 Solid Carbide Insert, Grade IC8250, Al2O3 - Iscar 6492284
MFR# 6492284ISO/ANSI# ISO 13399Series Cut Grip
$42.08List $53.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC8250
MaterialSolid Carbide
CoatingAl2O3
Description
The Iscar 6492284 is a ISO 13399 solid carbide indexable insert, grade IC8250, Al2O3 coated. Suited for stainless steel, steel.
Specifications
Chip breakerF
Coating finishAl2O3
Coating processCVD
Corner radius0.0157
Cutting width0.1575
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size400E040
Insert size code400E040
Insert styleGIF
Iso codeISO 13399
Manufacturer gradeIC8250
Maximum depth of cut0.5118
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Overall length0.6024
Overall width0.1575
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
