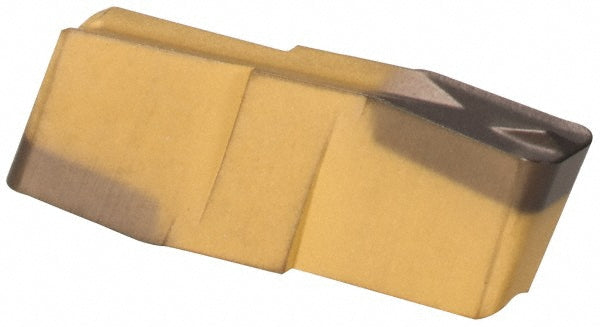

GIP 3.00E-0.80 Solid Carbide Insert, Grade IC8250, Al2O3 - Iscar 6492404
MFR# 6492404ISO/ANSI# GIP 3.00E-0.80Cat# GIP 3.00E-0.80Series Cut Grip
$41.88List $52.70
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC8250
MaterialSolid Carbide
CoatingAl2O3
Description
The Iscar 6492404 is a GIP 3.00E-0.80 solid carbide indexable insert, grade IC8250, Al2O3 coated. Suited for stainless steel, steel.
Specifications
Chip breakerP
Coating finishAl2O3
Coating processCVD
Corner radius0.0310
Cutting height0.1970
Cutting width0.1181
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size300E080
Insert size code300E080
Insert styleGIP
Iso codeGIP 3.00E-0.80
Manufacturers catalog numberGIP 3.00E-0.80
Manufacturer gradeIC8250
Maximum depth of cut0.5120
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Overall length0.6020
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
