Iscar

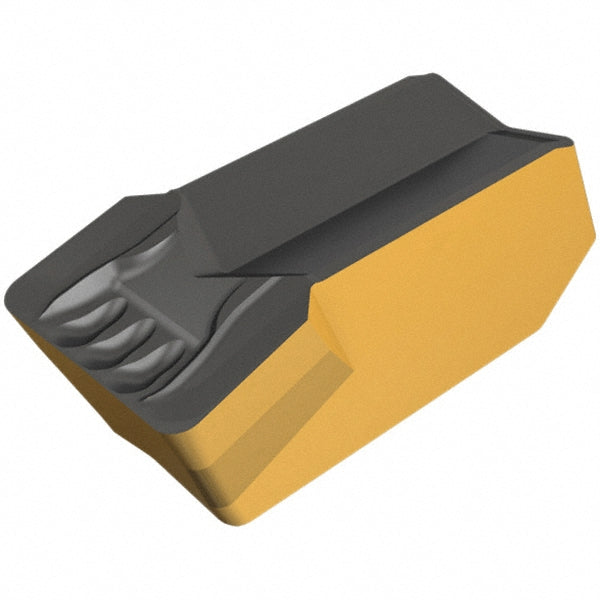

ISO 13399 Carbide Insert, Grade IC8250, Al2O3 - Iscar 6492494
MFR# 6492494ISO/ANSI# ISO 13399Series Cut Grip
$18.97List $24.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC8250
MaterialCarbide
CoatingAl2O3
Description
The Iscar 6492494 is a ISO 13399 carbide indexable insert, grade IC8250, Al2O3 coated. Suited for stainless steel, steel.
Specifications
Chip breakerY
Coating finishAl2O3
Coating processPVD
Corner radius0.0157
Cutting width0.118
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size304
Insert size code304
Insert styleGIMY
Iso codeISO 13399
Manufacturer gradeIC8250
Maximum depth of cut0.0710
Maximum depth of cut range0.0000 to 0.0750
Multi use toolYes
Overall length0.6024
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle7
StandardsISO 13399
