Iscar

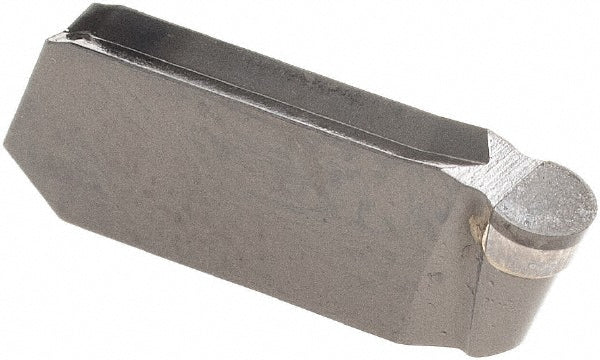

ISO 13399 Polycrystalline Diamond Insert, Grade ID5 - Iscar 6495326
MFR# 6495326ISO/ANSI# ISO 13399Series Cut Grip
$163.35List $209.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeID5
MaterialPolycrystalline Diamond
Description
The Iscar 6495326 is a ISO 13399 polycrystalline diamond indexable insert, grade ID5. Suited for non-ferrous metal.
Specifications
Chip breakerA
Corner radius0.0591
Cutting width0.1181
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialPolycrystalline Diamond
Insert size300150
Insert size code300150D
Insert styleGIPA
Iso codeISO 13399
Manufacturer gradeID5
Maximum depth of cut0.0590
Maximum depth of cut range0.0000 to 0.0750
Msc manufacturer numberGIPA 3.00-1.50D
Multi use toolNo
Overall length0.5906
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
