Iscar

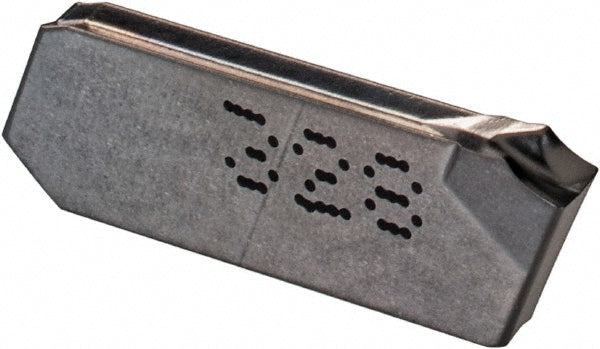

ISO 13399 Solid Carbide Insert, Grade IC328, TiN/TiCN/TiN - Iscar 6496475
MFR# 6496475ISO/ANSI# ISO 13399Cat# GIM 2.2J-8RASeries Cut-Grip
$16.71List $21.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC328
MaterialSolid Carbide
CoatingTiN/TiCN/TiN
Description
The Iscar 6496475 is a ISO 13399 solid carbide indexable insert, grade IC328, TiN/TiCN/TiN coated. Suited for superalloy.
Specifications
ChipbreakerJ
Coating finishTiN/TiCN/TiN
Coating processPVD
Corner radius0.0067
Cutting tool applicationGrooving; Parting
Cutting width0.0870
Full radiusNo
Insert handRight Hand
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size code2.2
Insert styleGIM
Iso codeISO 13399
Lead angle8
Lead angle directionRight Hand
Manufacturers catalog numberGIM 2.2J-8RA
Manufacturer gradeIC328
Material gradeP45-K40
Multi use toolYes
Overall length0.6020
Primary workpiece materialSuperalloy
Relief angle7.00
Single or double endSingle
StandardsISO 13399
