Iscar

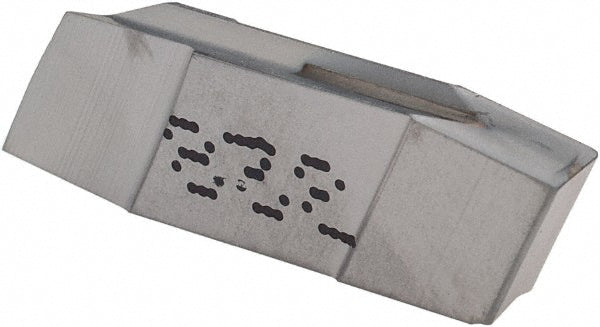

ISO 13399 Solid Carbide Insert, Grade IC328, TiCN - Iscar 6498637
MFR# 6498637ISO/ANSI# ISO 13399Series Cut Grip
$26.14List $32.90
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC328
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6498637 is a ISO 13399 solid carbide indexable insert, grade IC328, TiCN coated. Suited for superalloy, titanium.
Specifications
Coating finishTiCN
Coating processPVD
Corner radius0.0020
Cutting width0.0930
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size235A46
Insert size code235A46
Insert styleGIPM
Iso codeISO 13399
Manufacturer gradeIC328
Maximum depth of cut0.0390
Maximum depth of cut range0.0000 to 0.0750
Multi use toolYes
Overall length0.6020
Primary workpiece materialSuperalloy; Titanium
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
