Iscar

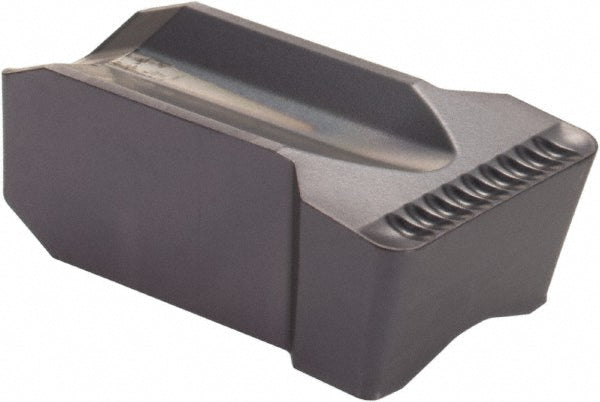

TIGER 1453-152 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6499864
MFR# 6499864ISO/ANSI# TIGER 1453-152Cat# TIGER 1453-152Series Cut Grip
$30.25List $38.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6499864 is a TIGER 1453-152 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0600
Cutting height0.2320
Cutting width0.5720
Full radiusNo
Insert handRight Hand
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size1453152
Insert size code1453152
Insert styleTIGER
Iso codeTIGER 1453-152
Manufacturers catalog numberTIGER 1453-152
Manufacturer gradeIC908
Material gradeSubmicron
Multi use toolNo
Overall length0.9450
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endSingle
