Iscar

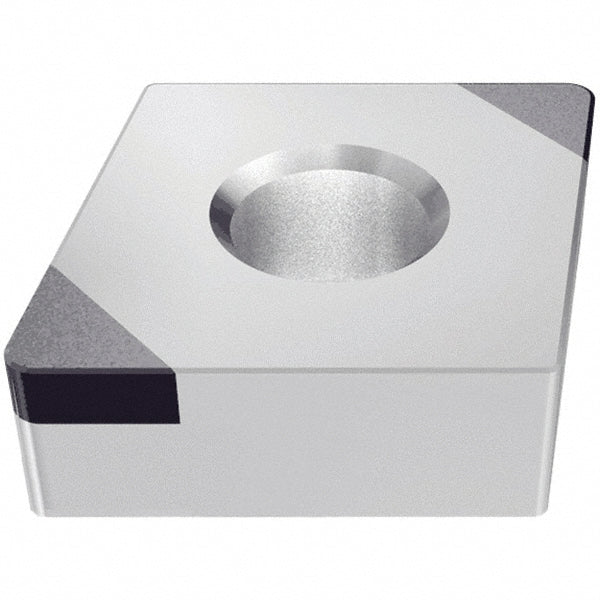

CNGA 432-M2 Cubic Boron Nitride Insert, Grade IB10H - Iscar 6817926
MFR# 6817926ISO/ANSI# CNGA 432-M2Series Isoturn
$74.61List $95.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIB10H
MaterialCubic Boron Nitride
Description
The Iscar 6817926 is a CNGA 432-M2 cubic boron nitride indexable insert, grade IB10H. Suited for hard material.
Specifications
Chip breakerM2
Clearance codeN
Coating processUncoated
Corner radius in1/32
Full radiusNo
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCubic Boron Nitride
Insert shapeDiamond
Insert size code432
Insert styleCNGA
Insert thickness in3/16
Iso codeCNGA 432-M2
Length range0.5000 - 0.6000
Manufacturer gradeIB10H
Material gradeFine Grain
Maximum depth of cut0.0120
Primary workpiece materialHard Material
Relief angle0
Single or double endSingle
Single or multi tippedMulti Tipped
StandardsISO 13399
Tolerance codeG
