Iscar

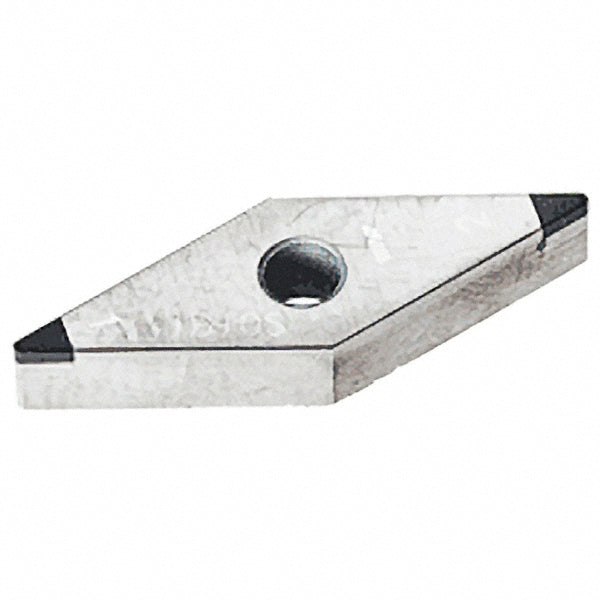

ISO 13399 Polycrystalline Cubic Boron Nitride Insert, Grade IB10S - Iscar 6822387
MFR# 6822387ISO/ANSI# ISO 13399Series Isoturn
$81.55List $104.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIB10S
MaterialPolycrystalline Cubic Boron Nitride
Description
The Iscar 6822387 is a ISO 13399 polycrystalline cubic boron nitride indexable insert, grade IB10S. Suited for superalloy, titanium.
Specifications
Chip breakerM2
Clearance codeN
Coating processUncoated
Corner radius in1/64
Included angle35.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialPolycrystalline Cubic Boron Nitride
Insert shapeDiamond
Insert size code331
Insert styleVNGA
Insert thickness in3/16
Iso codeISO 13399
Length range0.6500 - 0.7000
Manufacturer gradeIB10S
Maximum depth of cut0.0197
Primary workpiece materialSuperalloy; Titanium
Relief angle0
Single or multi tippedMulti Tipped
StandardsISO 13399
Stocking categoryD
Tolerance codeG
