Iscar

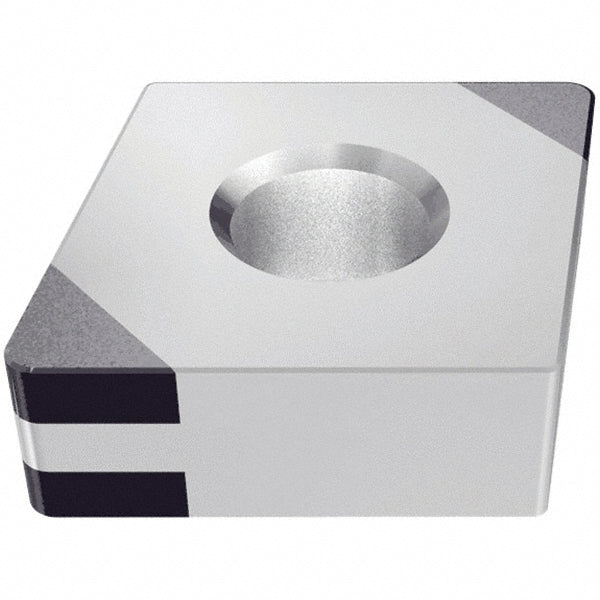

ISO 13399 Polycrystalline Cubic Boron Nitride Insert, Grade IB10HC, TiN - Iscar 6834436
MFR# 6834436ISO/ANSI# ISO 13399Series Isoturn
$120.70List $154.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIB10HC
MaterialPolycrystalline Cubic Boron Nitride
CoatingTiN
Description
The Iscar 6834436 is a ISO 13399 polycrystalline cubic boron nitride indexable insert, grade IB10HC, TiN coated. Suited for hard material.
Specifications
Chip breakerM4
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/32
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialPolycrystalline Cubic Boron Nitride
Insert shapeDiamond
Insert size code432
Insert styleCNGA
Insert thickness in3/16
Iso codeISO 13399
Length range0.5000 - 0.6000
Manufacturer gradeIB10HC
Maximum depth of cut0.0197
Primary workpiece materialHard Material
Relief angle0
Single or multi tippedMulti Tipped
StandardsISO 13399
Stocking categoryD
Tolerance codeG
