Iscar

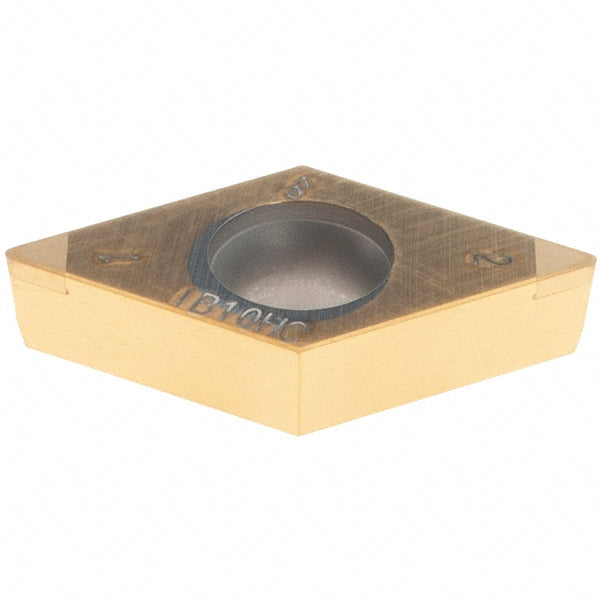

ISO 13399 Polycrystalline Cubic Boron Nitride Insert, Grade IB10HC, TiN - Iscar 6834438
MFR# 6834438ISO/ANSI# ISO 13399Series Isoturn
$76.25List $97.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIB10HC
MaterialPolycrystalline Cubic Boron Nitride
CoatingTiN
Description
The Iscar 6834438 is a ISO 13399 polycrystalline cubic boron nitride indexable insert, grade IB10HC, TiN coated.
Specifications
Chip breakerM2
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius in1/64
Hole diameter0.1732
Included angle55.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.4567
Insert materialPolycrystalline Cubic Boron Nitride
Insert shapeDiamond
Insert size code3-1
Insert styleDCMW
Insert thickness in5/32
Iso codeISO 13399
Length range0.4000 - 0.5000
Manufacturer gradeIB10HC
Maximum depth of cut0.0197
RakePositive
Relief angle7
Single or multi tippedMulti Tipped
StandardsISO 13399
Stocking categoryD
Tolerance codeM
