Iscar
ISO 13399 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6837457
MFR# 6837457ISO/ANSI# ISO 13399Series Isoturn
$29.52List $37.20
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description

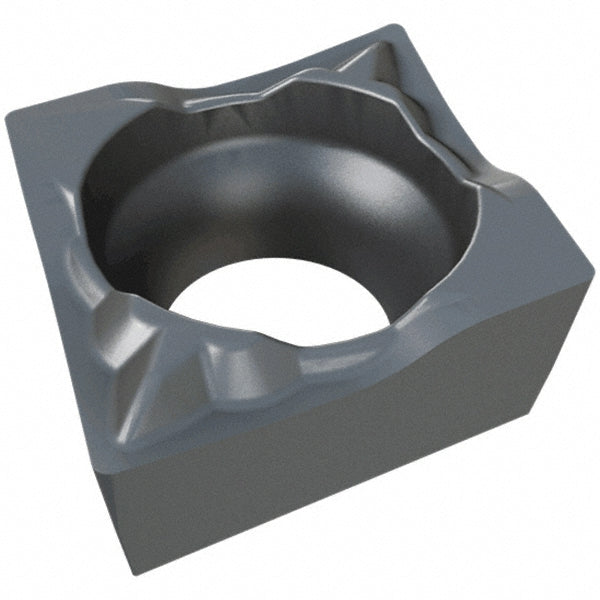

The Iscar 6837457 is a ISO 13399 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Chip breakerF1P
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0157
Hole diameter0.0910
Included angle80.0
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code04T104
Insert styleCCGT
Iso codeISO 13399
Manufacturer gradeIC908
Maximum depth of cut0.0200
Primary workpiece materialUniversal
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeG
