Fasteners for Indexables - Iscar 7000203

Iscar

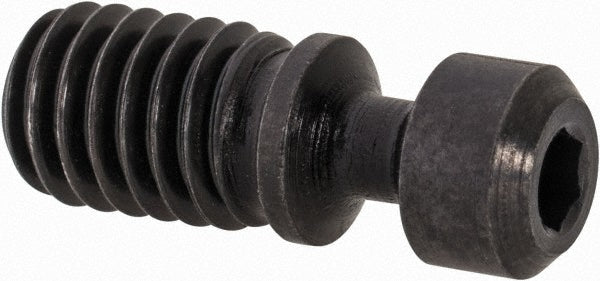

Fasteners for Indexables - Iscar 7000203

MFR# 7000203Series Heliturn LD

$2.25List $2.30 Save 2%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Thread sizeM6 x 1

Description

The Iscar 7000203 fasteners for indexables. Series Heliturn LD.

Specifications

Complete insert compatibilityCNMG 090404-F3P; CNMG 090404-M3M; CNMG 090408-F3P; CNMG 090408-M3M; CNMG 120404-F3P; CNMG 120408-F3P; CNMG 120408-M3M; CNMG 120412-F3P; CNMG 120412-M3M; CNMG 120416-M3M; CNMX 090604-M3PW; CNMX 090608-M3PW; CNMX 120704-M4MW; CNMX 120708-M4MW; CNMX 120708-M
Drive typeHex Socket
Hardware compatibilityInsert
Head typeCylindrical
Indexable tool typeTurning
Key driver compatibilityHW 2.5
Overall length0.6575
Screw typeCap Screws
Thread size inM6 x 1
Toolholder style compatibilityPCLN
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
