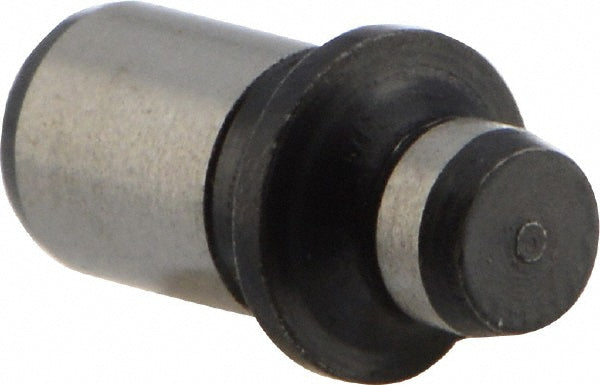

Fasteners for Indexables - Iscar 7002061

Iscar

Fasteners for Indexables - Iscar 7002061

MFR# 7002061ISO/ANSI# ZNW3WSeries Isoturn

$4.67List $4.80 Save 2%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 7002061 fasteners for indexables. Series Isoturn.

Specifications

Clamp compatibilityLC 250 SET 1
Complete insert compatibilityWNMA 060404; WNMA 060408; WNMA 06T304; WNMA 06T308; WNMA 06T312; WNMG 060402-NF; WNMG 060404-GN; WNMG 060404-PP; WNMG 060404-TF; WNMG 060408-GN; WNMG 060408-PP; WNMG 060408-TF; WNMG 06T301-NF; WNMG 06T302-NF; WNMG 06T304-GN; WNMG 06T304-NF; WNMG 06T304-PP
Hardware compatibilityShim
Indexable tool typeTurning
Industry standard numberZNW3W
Pin typeLock
Toolholder style compatibilityMWLN-CA-W
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
