Jergens

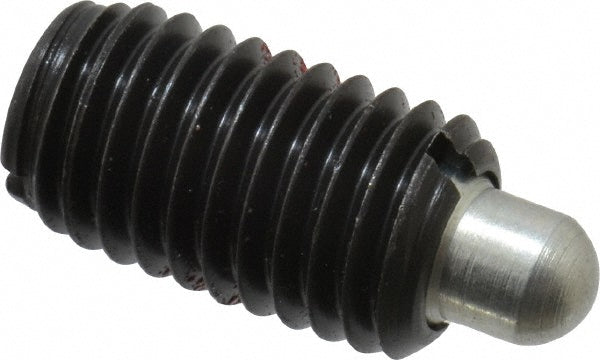

M12 x 1.75 Spring Plunger - Jergens 27175
MFR# 27175
$7.63List $9.57
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Jergens 27175 is a M12 x 1.75 steel spring plunger.
Specifications
Body length20.50
Body materialSteel
Final end force kg3.86
FinishBlack
Initial end force kg0.77
Locking elementYes
Maximum plunger diameter (mm)6.30
Nose materialSteel
Plunger length (mm)20.50
Plunger length typeShort
Plunger projection (mm)6.50
Thread length (mm)20.50
Thread sizeM12 x 1.75
