Jergens
Tooling Ball - Jergens 29017
MFR# 29017
$127.54List $135.50
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

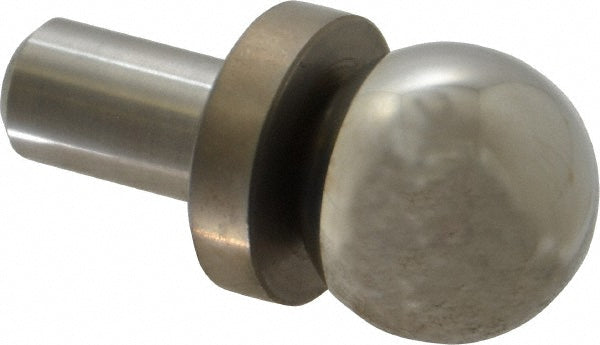

The Jergens 29017 is a stainless steel tooling ball.
Specifications
Ball and shank concentricity0.0002
Ball center to shank bottom1.6200
Ball center to shoulder bottom0.7000
Ball center to shoulder tolerance0.0002
Ball diameter in1
Ball tolerance0.0005
BreakawayYes
Heat treatedYes
MaterialStainless Steel
Shank diameter0.4997
Shank tolerance+0.0000; -0.0002
ShoulderYes
Shoulder diameter1.0000
Tapped shankYes
Tooling ball styleChecking
