Jergens

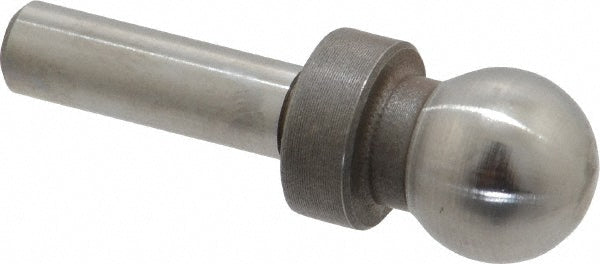

Tooling Ball - Jergens 29044
MFR# 29044
$64.04List $66.86
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Jergens 29044 is a steel tooling ball.
Specifications
Ball and shank concentricity0.0002
Ball center to shank bottom in1-3/8
Ball center to shoulder bottom0.5000
Ball center to shoulder tolerance0.0002
Ball diameter in1/2
Ball tolerance0.0002
BreakawayNo
Heat treatedYes
MaterialSteel
Shank attachment typeSlip-Fit
Shank diameter in1/4
Shank tolerance+0.0000; -0.0004
ShoulderYes
Shoulder diameter1/2
Tapped shankNo
Tooling ball styleInspection
