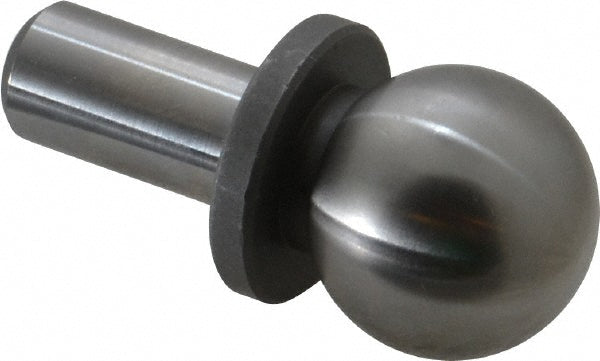

Tooling Ball - Jergens 29045
MFR# 29045
$66.36List $70.50
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Jergens 29045 is a steel tooling ball.
Specifications
Ball and shank concentricity0.0002
Ball center to shank bottom in1-1/4
Ball center to shoulder bottom0.5000
Ball center to shoulder tolerance0.0002
Ball diameter in3/4
Ball tolerance0.0002
BreakawayNo
Heat treatedYes
MaterialSteel
Shank attachment typeSlip-Fit
Shank diameter in3/8
Shank tolerance+0.0000; -0.0004
ShoulderYes
Shoulder diameter3/4
Tapped shankNo
Tooling ball styleInspection
