Jergens
Tooling Ball - Jergens 29051
MFR# 29051
$72.94List $77.49
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

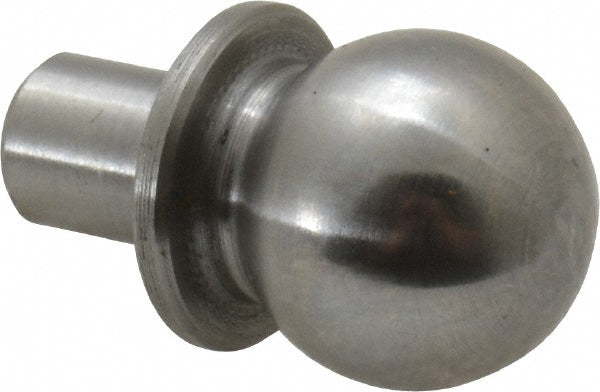

The Jergens 29051 is a steel tooling ball.
Specifications
Ball and shank concentricity0.0002
Ball center to shank bottom in5/8
Ball center to shoulder bottom0.3125
Ball center to shoulder tolerance0.0002
Ball diameter in1/2
Ball tolerance0.0002
BreakawayNo
Heat treatedNo
Hole depth in1/4
Hole thread size6-32
MaterialSteel
Shank diameter in1/4
Shank tolerance+0.0000; -0.0004
ShoulderYes
Shoulder diameter0.5000
Tapped shankYes
Tooling ball styleConstruction
