Jergens
M4 x 0.70 Spring Plunger - Jergens 30370
MFR# 30370
$7.34List $9.22
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

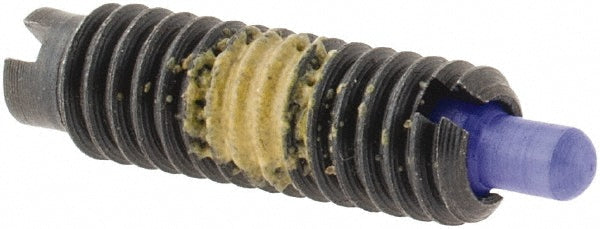

The Jergens 30370 is a M4 x 0.70 steel spring plunger.
Specifications
Body length13.00
Body materialSteel
Final end force kg1.81
FinishBlack
Initial end force kg0.23
Locking elementYes
Maximum plunger diameter (mm)1.78
Nose materialDelrin
Plunger length (mm)13.00
Plunger length typeShort
Plunger projection (mm)2.50
Thread length (mm)13.00
Thread sizeM4 x 0.70
