Jergens

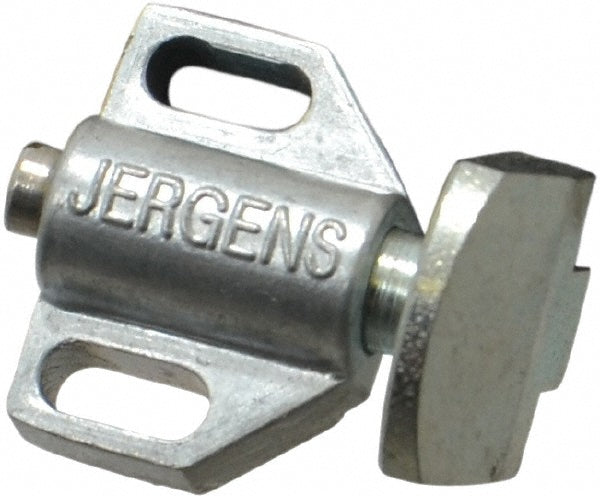

Spring Plunger - Jergens 36104
MFR# 36104
$30.40List $38.16
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Jergens 36104 is a zinc aluminum alloy spring plunger.
Specifications
Base thickness in3/16; 0.1875in
Body length0.6875in; 0.6875
Body materialZinc Aluminum Alloy
Body width0.9375
Distance between button top edge0.4375
Distance between button to bottom edge0.2188in
Distance between button to top edge0.4375in
Distance between mount hole centers in21/32; 0.66in
Distance betw button bottom edge0.2188
Initial end force10lb
Middle end force kg4.54kg; 4.54
Mounting slot length in23/64
Mounting slot width0.1406in; 0.1406
Stop head height in7/8
Stop head thickness0.1875
Stop head width in0.625in
Stop materialLow Carbon Steel
Stroke length in1/8
Tang length in15/64
Tang profileTang
Tang width0.2500
