Jergens

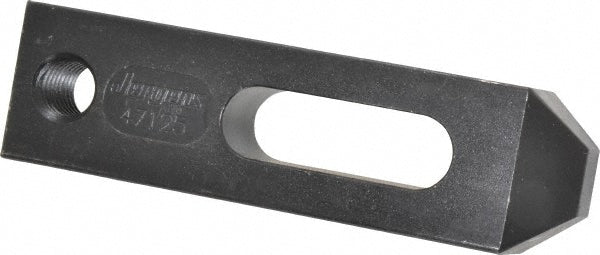

Fixturing Clamp - Jergens 47125
MFR# 47125
$35.65List $37.22
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Jergens 47125 is a carbon steel fixturing clamp.
Specifications
Centerline of slot to nose frac in1-3/16
End to hole center in7/16
End to stud center in1-3/16
FinishBlack
Heel typePlain
Height in3/4
MaterialCarbon Steel
Material gradeC-1018
Nose typeTapered
Overall length in4-1/2
SerratedNo
Slot width in17/32
Stud size in1/2
Tapered height in1/4
Tapered width in1/2
TappedYes
Tap size1/2-13
Travel in1-1/4
Width in1-1/4
