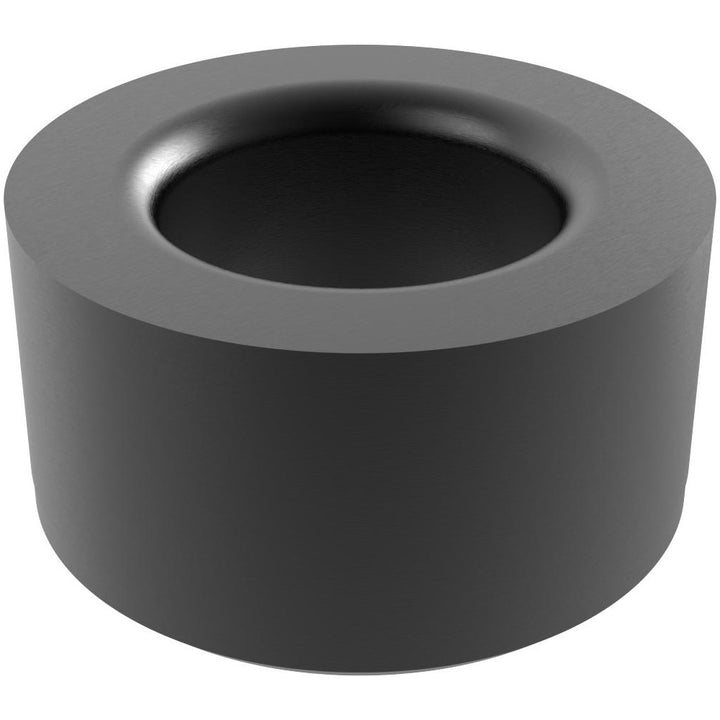

Ball Lock Primary Liner, 19.04 mm OD x 13 mm ID, for 20 mm Plate - Jergens 49756

Jergens

Ball Lock Primary Liner, 19.04 mm OD x 13 mm ID, for 20 mm Plate - Jergens 49756

MFR# JERGENS-49756

$18.20List $19.96 Save 8%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Jergens 49756 is a primary liner for the Jergens Ball Lock modular fixturing system. It is pressed into a 20 mm fixture plate to locate a 13 mm Ball Lock shank, with a 19.04 mm outside diameter (tolerance -0.01 mm), a 13 mm bore and a plate thickness tolerance of ±0.13 mm. Metric version of the 49706.

Specifications

Country of originIndia
Inside diameter (mm)13mm
Liner typePrimary
Outside diameter (mm)19.04
Outside diameter tolerance-0.01 mm
Plate thickness compatibility20 mm
Plate thickness tolerance±0.13 mm
System compatibilityBall Lock
