Kennametal

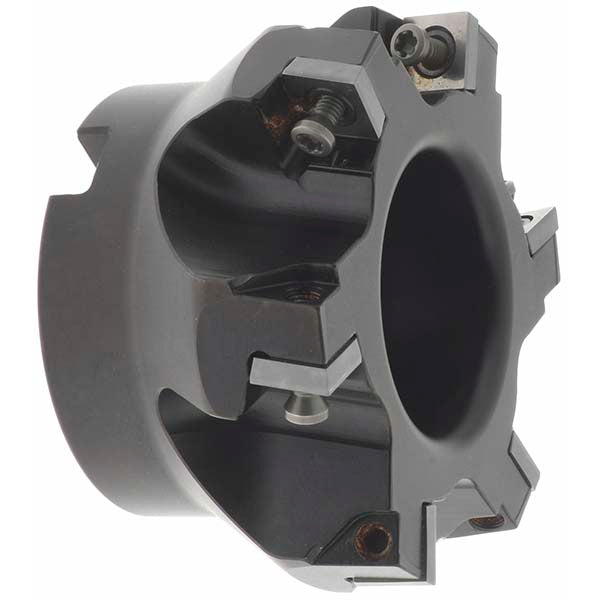

Indexable Milling Cutters - Kennametal 1024931
MFR# 1024931Series KSSM
$835.56List $1,002.17
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Description
The Kennametal 1024931 indexable milling cutters. Series KSSM.
Specifications
Arbor hole diameter in1
Compatible insert size codeSD.T 43..
Complete insert compatibilitySDCW 433PDSR8GN; SDCW 43PDSR8GN; SDPT 43PDER8GB2; SDPT 43PDSR8GB2
Coolant throughNo
Cutter styleKSSISR
Cutting directionRight Hand
Hub diameter2.0650
Insert holding methodScrew
Keyway width0.3900
Lead angle0/90
Maximum body diameter2.9480
Maximum cutting diameter in3
Maximum depth of cut0.3610
Number of cutter inserts6
Number of flutes6
Overall height in1-3/4
Pitch typeMedium
