Kennametal

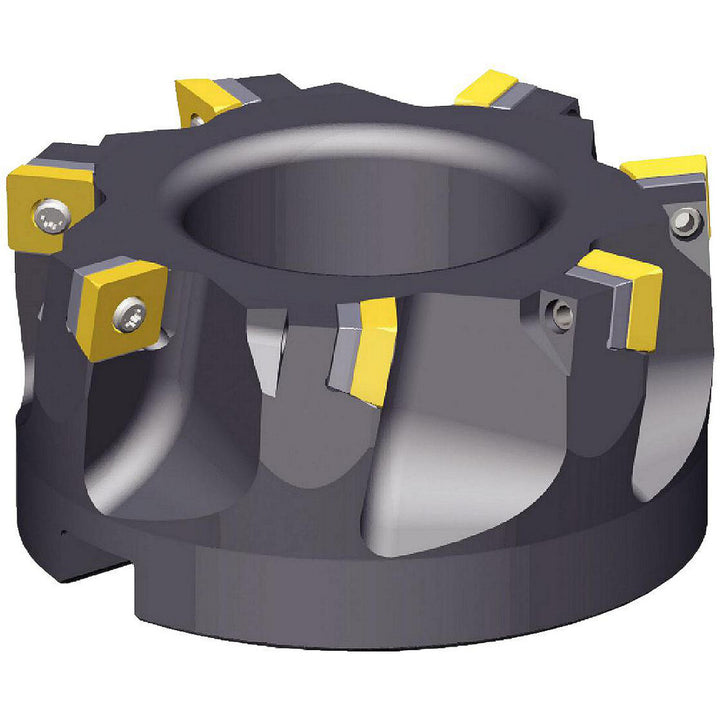

Indexable Milling Cutters - Kennametal 1025031
MFR# 1025031Series KSSM
$1,115.66List $1,338.13
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes7
Description
The Kennametal 1025031 indexable milling cutters. Series KSSM.
Specifications
Arbor hole diameter in1-1/2
Compatible insert size codeSD.T 43..
Complete insert compatibilitySDCW 433PDSR8GN; SDCW 43PDSR8GN; SDPT 43PDER8GB2; SDPT 43PDSR8GB2
Coolant throughNo
Cutter styleKSSISR
Cutting directionRight Hand
Hub diameter3.6850
Insert holding methodScrew
Keyway width0.6400
Lead angle0/90
Maximum body diameter3.9430
Maximum cutting diameter in4
Maximum depth of cut0.3610
Number of cutter inserts7
Number of flutes7
Overall height in2
Pitch typeMedium
