Kennametal

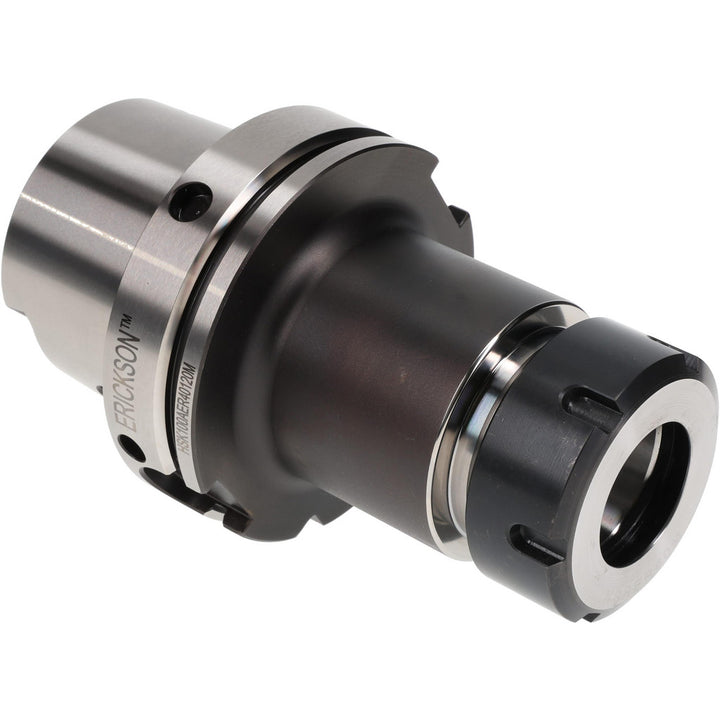

HSK100 Collet Chuck - Kennametal 1086563
MFR# 1086563
$632.57List $794.04
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1086563 is a HSK100 Collet Chuck.
Specifications
Actuator typeWrench
Balanced to rpm15000
Collet nut diameter1.6500
Collet seriesER25
Collet systemER
Coolant typeThrough-Spindle
Maximum collet capacity0.6300
Minimum collet capacity0.0400
Overall length5.9055
Projection3.9370in
Shank typeHollow Taper
Taper sizeHSK100
Through coolantYes
