Kennametal

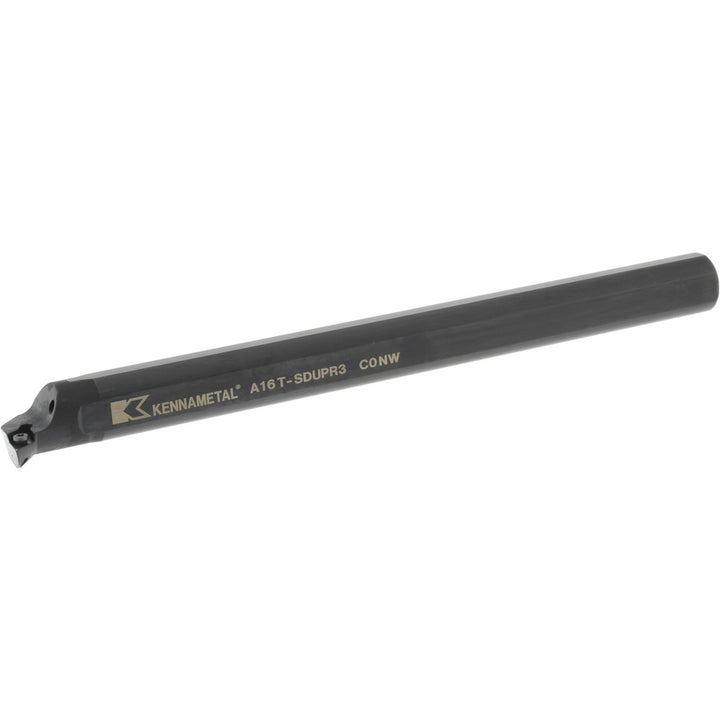

Indexable Boring - Kennametal 1094697
MFR# 1094697
$330.57List $403.51
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1094697 indexable boring.
Specifications
Center to cutting edge0.7500
Coolant hole thread size in1/4-18 NPT
Coolant throughYes
Hand of holderRight Hand
Insert compatibilityDP..
Insert holding methodScrew
Insert inscribed circle in3/8
Insert thickness in5/32
Lead angle-3
Minimum bore diameter1.3000
Multi use toolNo
Overall length in12
RakeNeutral
Rake angle0.00
Shank diameter in1
Toolholder styleA-SDUP
Tool materialSteel
