Kennametal

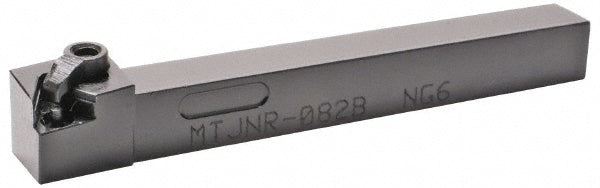

Indexable Turning & Profiling - Kennametal 1096009
MFR# 1096009Series Kenloc
$116.35List $139.54
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1096009 indexable turning & profiling. Series Kenloc.
Specifications
Back of bar to cutting edge in5/8
Complete insert compatibilityTN.. 221
Coolant throughNo
Hand of holderLeft Hand
Head length0.7200
Insert compatibilityTN..22.
Insert holding methodClamp; Screw
Insert inscribed circle in1/4
Multi use toolNo
Overall length in4-1/2
RakeNegative
Shank height in1/2
Shank width in1/2
Toolholder materialSteel
Toolholder styleMTJN
