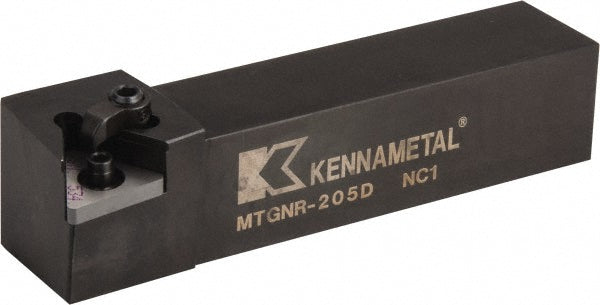

Indexable Turning & Profiling - Kennametal 1096195
MFR# 1096195Cat# MTGNR; L205DSeries Kenloc
$160.17List $192.11
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1096195 indexable turning & profiling. Series Kenloc.
Specifications
Back of bar to cutting edge1.5000
Complete insert compatibilityTN.. 543
Coolant throughNo
Hand of holderRight Hand
Head length1.4400
Insert compatibilityTN..54.
Insert holding methodClamp; Screw
Insert inscribed circle in5/8
Manufacturers catalog numberMTGNR; L205D
Multi use toolNo
Overall length in6
RakeNegative
Rake angle-5
Shank height in1-1/4
Shank width in1-1/4
Toolholder materialSteel
Toolholder styleMTGN
