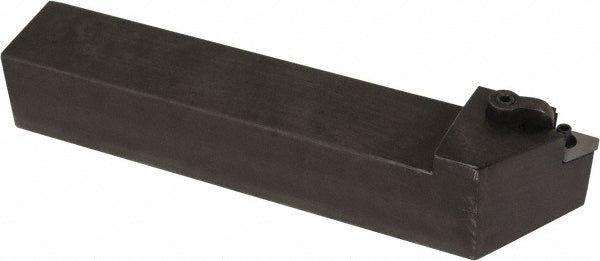

Indexable Turning & Profiling - Kennametal 1096243
MFR# 1096243Cat# MDJNR; L163DSeries Kenloc
$206.34List $247.49
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1096243 indexable turning & profiling. Series Kenloc.
Specifications
Back of bar to cutting edge1.2500
Complete insert compatibilityDN.. 332
Coolant throughNo
Hand of holderRight Hand
Head length1.2500
Insert compatibilityDN..33.
Insert holding methodClamp; Screw
Insert inscribed circle in3/8
Manufacturers catalog numberMDJNR; L163D
Multi use toolNo
Overall length in6
RakeNegative
Shank height in1
Shank width in1
Toolholder materialSteel
Toolholder styleMDJN
