Kennametal

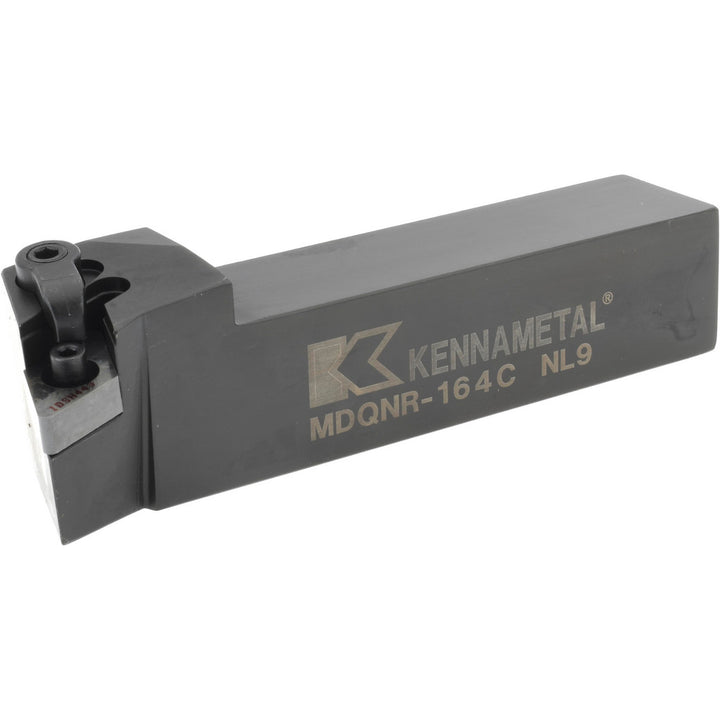

Indexable Turning & Profiling - Kennametal 1096266
MFR# 1096266Cat# MDQNR; L164CSeries Kenloc
$173.07List $211.26
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1096266 indexable turning & profiling. Series Kenloc.
Specifications
Back of bar to cutting edge1.2500
Complete insert compatibilityDN.. 432
Coolant throughNo
Hand of holderRight Hand
Head length1.3700
Insert compatibilityDN..43.
Insert holding methodClamp; Screw
Insert inscribed circle in1/2
Manufacturers catalog numberMDQNR; L164C
Multi use toolNo
Overall length in5
RakeNegative
Rake angle-7
Shank height in1
Shank width in1
Toolholder materialSteel
Toolholder styleMDQN
