Kennametal

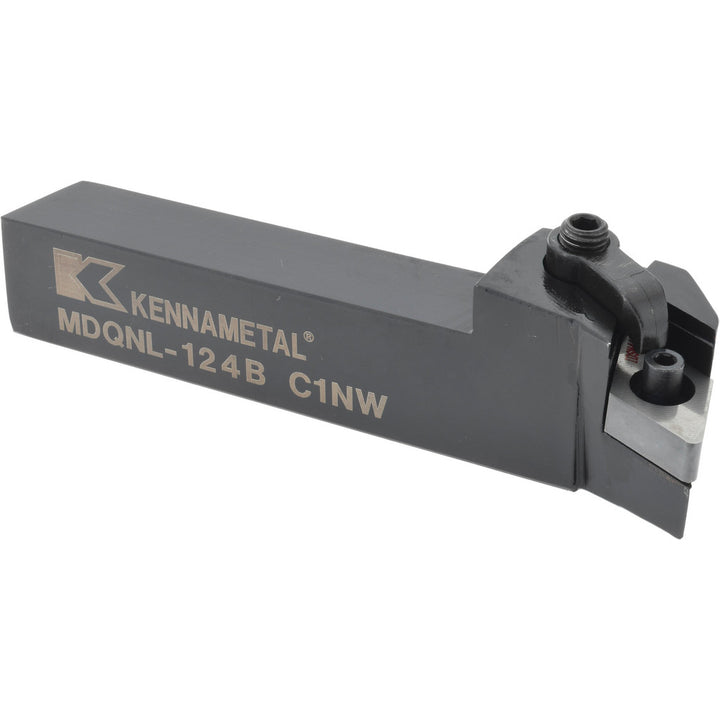

Indexable Turning & Profiling - Kennametal 1096271
MFR# 1096271Series Kenloc
$199.33List $239.08
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1096271 indexable turning & profiling. Series Kenloc.
Specifications
Back of bar to cutting edge in1
Complete insert compatibilityDN.. 432
Coolant throughNo
Hand of holderLeft Hand
Head length1.3700
Insert compatibilityDN..43.
Insert holding methodClamp; Screw
Insert inscribed circle in1/2
Multi use toolNo
Overall length in4-1/2
RakeNegative
Rake angle-7
Shank height in3/4
Shank width in3/4
Toolholder materialSteel
Toolholder styleMDQN
