Kennametal

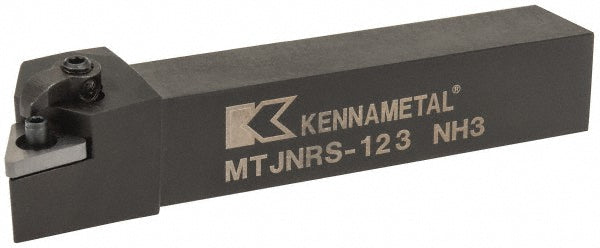

Indexable Turning & Profiling - Kennametal 1096336
MFR# 1096336Cat# MTJNR; LS123Series Kenloc
$126.11List $151.26
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1096336 indexable turning & profiling. Series Kenloc.
Specifications
Back of bar to cutting edge in1
Complete insert compatibilityTN.. 332
Coolant throughNo
Hand of holderRight Hand
Head length1.1200
Insert compatibilityTN..33.
Insert holding methodClamp; Screw
Insert inscribed circle in3/8
Manufacturers catalog numberMTJNR; LS123
Multi use toolNo
Overall length in4-1/2
RakeNegative
Shank height in3/4
Shank width in3/4
Toolholder materialSteel
Toolholder styleMTJN
