Kennametal

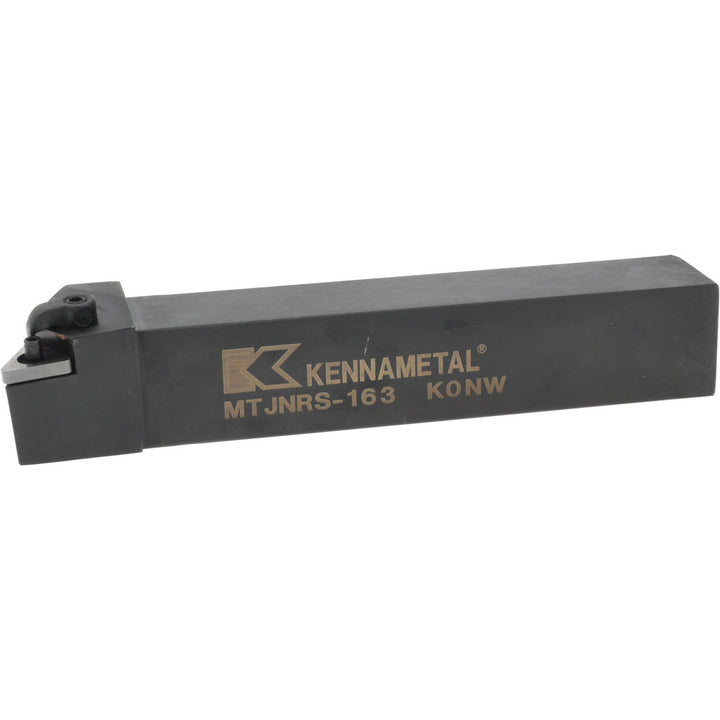

Indexable Turning & Profiling - Kennametal 1096338
MFR# 1096338Cat# MTJNR; LS163Series Kenloc
$119.38List $143.18
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1096338 indexable turning & profiling. Series Kenloc.
Specifications
Back of bar to cutting edge1.2500
Complete insert compatibilityTN.. 332
Coolant throughNo
Hand of holderRight Hand
Head length1.1200
Insert compatibilityTN..33.
Insert holding methodClamp; Screw
Insert inscribed circle in3/8
Manufacturers catalog numberMTJNR; LS163
Multi use toolNo
Overall length in6
RakeNegative
Shank height in1
Shank width in1
Toolholder materialSteel
Toolholder styleMTJN
