Kennametal

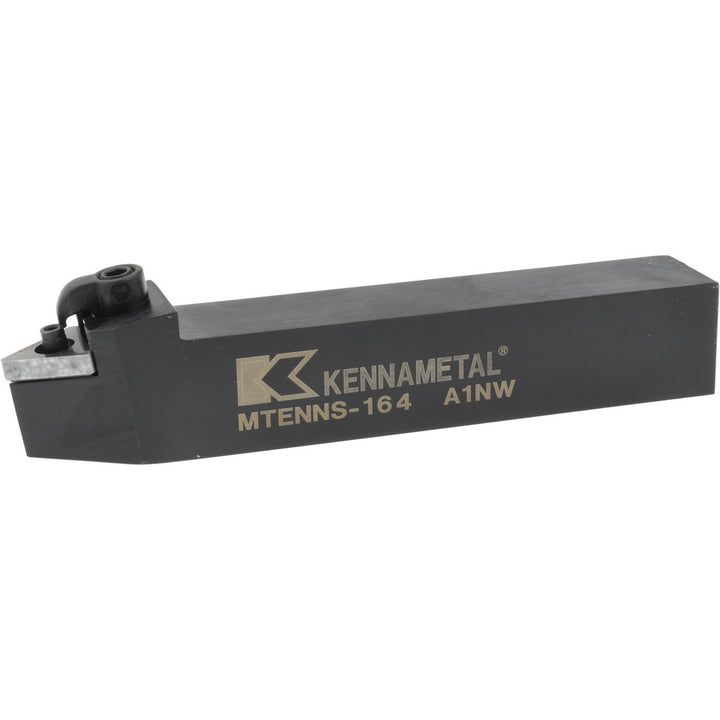

Indexable Turning & Profiling - Kennametal 1096354
MFR# 1096354Cat# MTENNS164Series Kenloc
$138.48List $166.09
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1096354 indexable turning & profiling. Series Kenloc.
Specifications
Back of bar to cutting edge in1/2
Complete insert compatibilityTN.. 432
Coolant throughNo
Hand of holderNeutral
Head length1.5000
Insert compatibilityTN..43.
Insert holding methodClamp; Screw
Insert inscribed circle in1/2
Manufacturers catalog numberMTENNS164
Multi use toolNo
Overall length in6
RakeNegative
Rake angle-10
Shank height in1
Shank width in1
Toolholder materialSteel
Toolholder styleMTEN
