Kennametal

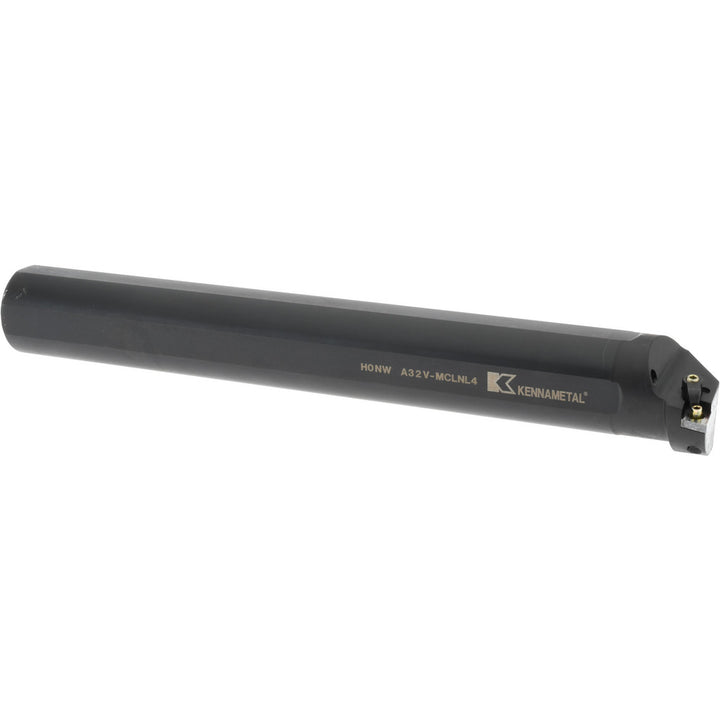

Indexable Boring - Kennametal 1096434
MFR# 1096434Series Kenloc
$661.59List $793.52
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1096434 indexable boring. Series Kenloc.
Specifications
Back of bar to cutting edge (mm)32.54
Center to cutting edge1.2810
Coolant hole thread size in1/4-18 NPT
Coolant throughYes
Hand of holderLeft Hand
Insert compatibilityCN..
Insert holding methodScrew; Clamp
Insert inscribed circle in1/2
Insert thickness in3/16
Lead angle-5
Minimum bore diameter2.4000
Multi use toolNo
Overall length in16
RakeNegative
Rake angle5.00
Shank diameter in2
Toolholder styleA-MCLN
Tool materialSteel
