Kennametal

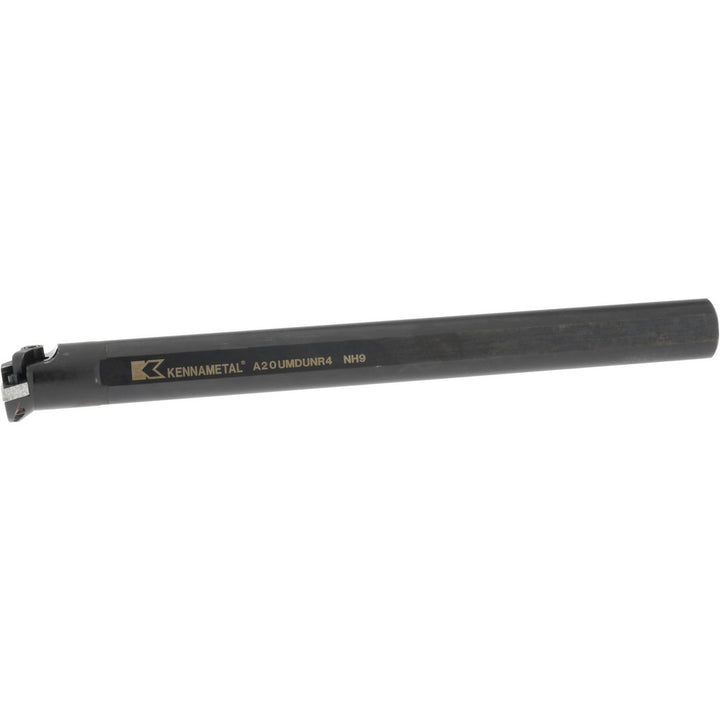

Indexable Boring - Kennametal 1096447
MFR# 1096447Series Kenloc
$543.16List $651.46
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1096447 indexable boring. Series Kenloc.
Specifications
Back of bar to cutting edge (mm)25.40
Center to cutting edge1.0000
Coolant hole thread size in1/4-18 NPT
Coolant throughYes
Hand of holderRight Hand
Insert compatibilityDN..
Insert holding methodScrew; Clamp
Insert inscribed circle in1/2
Insert thickness in3/16
Lead angle-3
Minimum bore diameter1.7050
Multi use toolNo
Overall length14.0000
RakeNegative
Rake angle5.00
Shank diameter in1-1/4
Toolholder styleA-MDUN
Tool materialSteel
