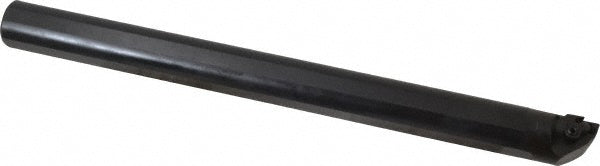

Indexable Boring - Kennametal 1096474
MFR# 1096474Series Kenloc
$416.10List $499.08
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1096474 indexable boring. Series Kenloc.
Specifications
Back of bar to cutting edge (mm)16.26
Center to cutting edge0.6400
Coolant hole thread size in1/4-18 NPT
Coolant throughYes
Hand of holderRight Hand
Insert compatibilityWN..
Insert holding methodScrew; Clamp
Insert inscribed circle in3/8
Insert thickness in3/16
Lead angle-5
Minimum bore diameter1.2000
Multi use toolNo
Overall length12.0000
RakeNegative
Rake angle5.00
Shank diameter in1
Toolholder styleA-MWLN
Tool materialSteel
