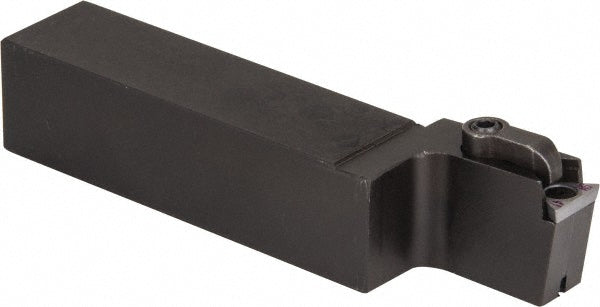

Indexable Turning & Profiling - Kennametal 1096977
MFR# 1096977Cat# CTCPR; L163CSeries Kendex
$139.62List $167.46
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1096977 indexable turning & profiling. Series Kendex.
Specifications
Back of bar to cutting edge1.2500
Complete insert compatibilityTP.. 322
Coolant throughNo
Hand of holderRight Hand
Head length1.5000
Insert compatibilityTP..32.
Insert holding methodClamp
Insert inscribed circle in3/8
Manufacturers catalog numberCTCPR; L163C
Multi use toolNo
Overall length in5
RakePositive
Rake angle3
Shank height in1
Shank width in1
Toolholder materialSteel
Toolholder styleCTCP
