Kennametal

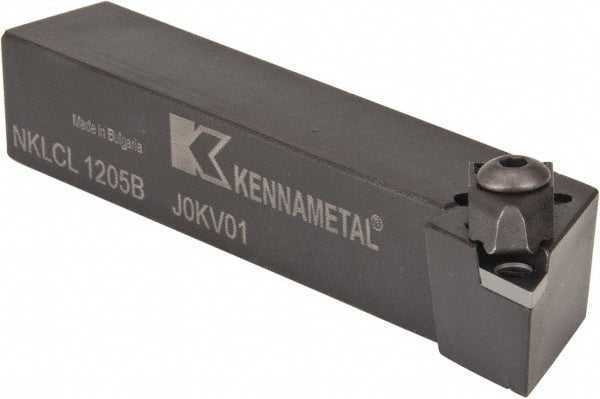

Indexable Turning & Profiling - Kennametal 1097185
MFR# 1097185Series Top Notch
$152.66List $183.11
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1097185 indexable turning & profiling. Series Top Notch.
Specifications
Back of bar to cutting edge1.0000
Compatible insert size codeNP..
Complete insert compatibilityNP.. 51L
Coolant throughNo
Hand of holderLeft Hand
Head length0.8800
Insert holding methodClamp
Insert inscribed circle in5/8
Internal or externalExternal
Lead angle-5.0degree
Overall length in4-1/2
RakeNeutral
Shank height in3/4
Shank width diameter in3/4
Toolholder materialSteel
Toolholder styleNKLC
