Kennametal

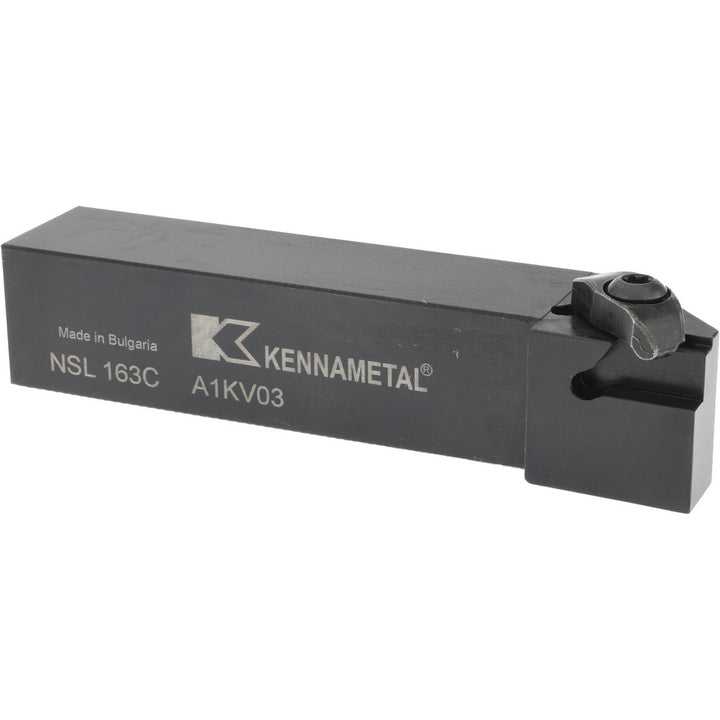

Indexable Threading Toolholders - Kennametal 1097257
MFR# 1097257Series Top Notch
$143.39List $175.02
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1097257 indexable threading toolholders. Series Top Notch.
Specifications
Back of bar to cutting edge1.2500
Center to cutting edge0.5000
Coolant throughNo
Cutting tool applicationGrooving; Threading
Hand of holderLeft Hand
Head length1.2500
Insert compatibilityN.3L
Insert holding methodClamp
Maximum depth of cut0.2100
Multi use toolYes
Overall length5.0000
Shank height1.0000
Shank width diameter1.0000
Thread typeExternal
Toolholder styleNS
