Kennametal
Indexable Threading Toolholders - Kennametal 1097561
MFR# 1097561Series Top Notch
$136.99List $167.21
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

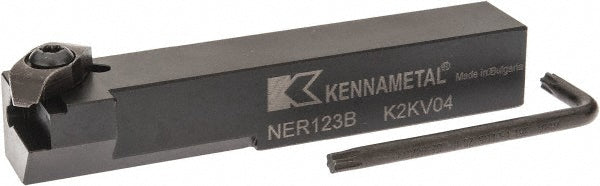

The Kennametal 1097561 indexable threading toolholders. Series Top Notch.
Specifications
Back of bar to cutting edge1.1250
Coolant throughNo
Cutting tool applicationGrooving; Threading
Hand of holderRight Hand
Head length0.7500
Insert compatibilityN.3L
Insert holding methodClamp
Maximum depth of cut0.2100
Msc manufacturer numberNER/L123B
Multi use toolYes
Overall length4.5000
Shank height0.7500
Shank width diameter0.7500
Thread typeExternal
Toolholder styleNE
