Kennametal

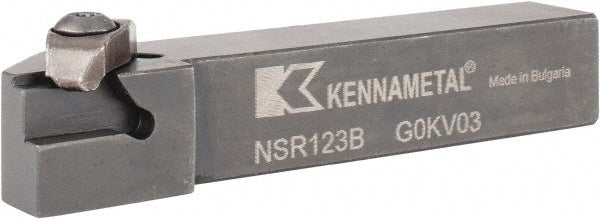

Indexable Threading Toolholders - Kennametal 1097586
MFR# 1097586Series Top Notch
$128.80List $151.97
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1097586 indexable threading toolholders. Series Top Notch.
Specifications
Back of bar to cutting edge1.0000
Center to cutting edge0.5000
Coolant throughNo
Cutting tool applicationGrooving; Threading
Hand of holderRight Hand
Head length1.2500
Insert compatibilityN.3R
Insert holding methodClamp
Maximum depth of cut0.2100
Msc manufacturer numberNSR/L123B
Multi use toolYes
Overall length4.5000
Shank height0.7500
Shank width diameter0.7500
Thread typeExternal
Toolholder styleNS
