Kennametal

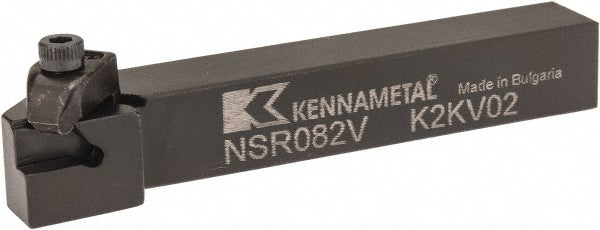

Indexable Threading Toolholders - Kennametal 1097608
MFR# 1097608Series Top Notch
$159.47List $191.27
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1097608 indexable threading toolholders. Series Top Notch.
Specifications
Back of bar to cutting edge0.7500
Center to cutting edge0.3500
Coolant throughNo
Cutting tool applicationGrooving; Threading
Hand of holderRight Hand
Head length0.7500
Insert compatibilityN.2R
Insert holding methodClamp
Maximum depth of cut0.1380
Msc manufacturer numberNSR/L082V
Multi use toolYes
Overall length3.5000
Shank height0.5000
Shank width diameter0.5000
Thread typeExternal
Toolholder styleNS
