Kennametal

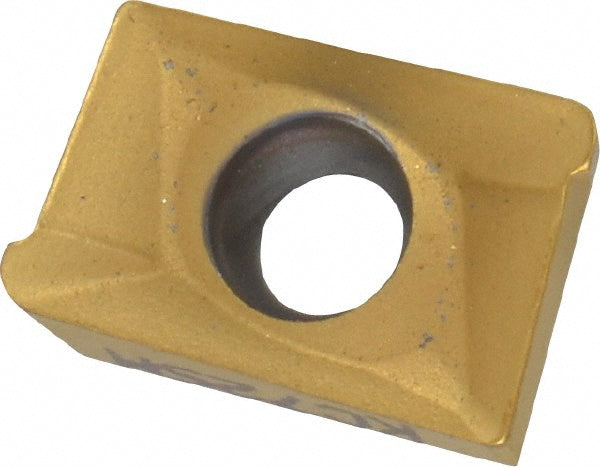

ANGT100308PPERLG Solid Carbide Insert, Grade KC725M, TiN - Kennametal 1112575
MFR# 1112575ISO/ANSI# ANGT100308PPERLGCat# ANGT100308PPERLGSeries ANGT
$37.67List $45.99
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeParallelogram
GradeKC725M
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 1112575 is a ANGT100308PPERLG solid carbide indexable insert, grade KC725M, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerLG
Coating finishTiN
Coating processPVD
Corner radius in1/32
Hole diameter0.1102
Included angle degree85
Inscribed circle in5/8
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code16232
Insert styleANGT
Iso codeANGT100308PPERLG
Length0.4094
Length range0.4000 to 0.4500
Manufacturers catalog numberANGT100308PPERLG
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Maximum depth of cut0.3765
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Rake angle30
Relief angle0.00
Thickness0.1417
Thickness range0.1250 to 0.1500
Width0.2677
