Kennametal

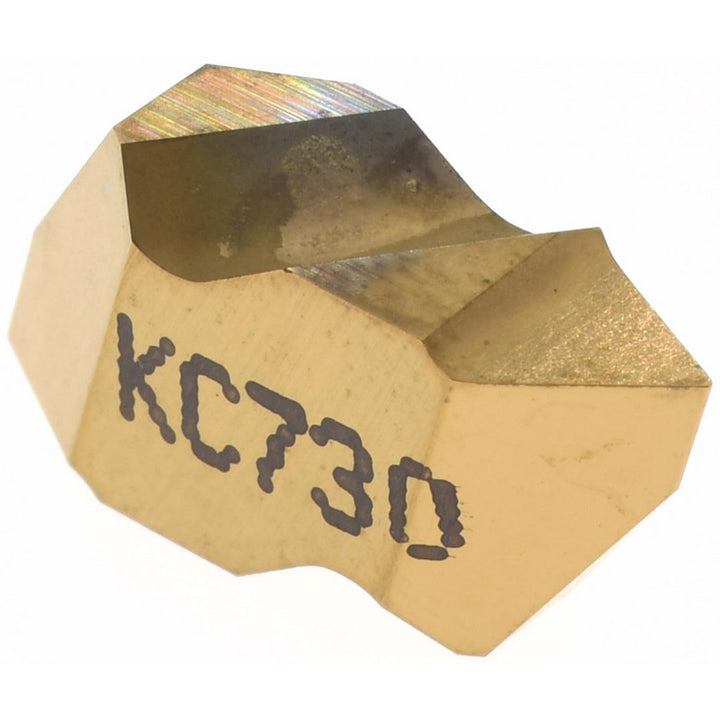

Carbide Insert, Grade KC730, TiN - Kennametal 1112954
MFR# 1112954Series Top Notch
$34.97List $41.95
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC730
MaterialCarbide
CoatingTiN
Description
The Kennametal 1112954 is a carbide indexable insert, grade KC730, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0040
External pitch0.70-3.00 mm; 8-36 TPI
Finish coatingTitanium Nitride
Included angle60
Insert handLeft Hand
Insert materialCarbide
Insert size2
Insert styleNTP
Internal pitch1.25 to 3.50 mm; 7 to 20 TPI
Manufacturer gradeKC730
Material gradeC2; C3; C4
Thickness0.15
Thread standardPartial Profile 60 Degree
Thread typeInternal; External
Tip to top of insert0.0752
