Kennametal

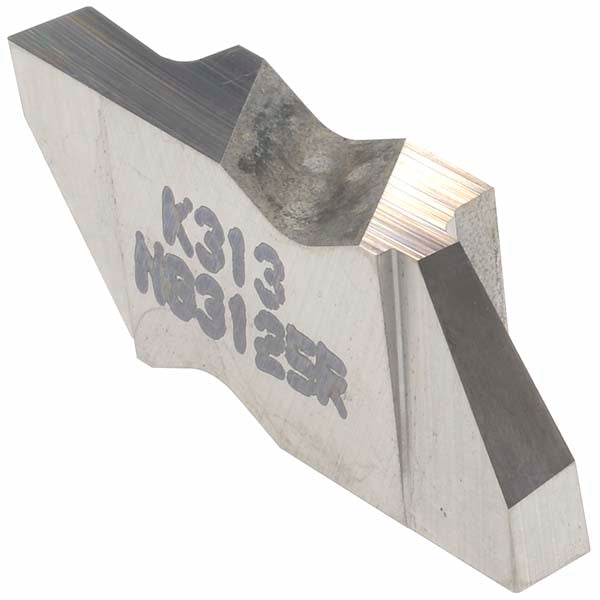

Carbide Insert, Grade K313 - Kennametal 1113248
MFR# 1113248Series Top Notch
$33.11List $40.41
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeK313
MaterialCarbide
Description
The Kennametal 1113248 is a carbide indexable insert, grade K313.
Specifications
Corner radius0.0075
Cutting width0.1252
Full radiusNo
Included angle degree55
Insert handRight Hand
Insert height0.3440
Insert materialCarbide
Insert size3125
Insert styleNG
Lead angle3
Manufacturer gradeK313
Material gradeC3; C4
Maximum depth of cut0.1500
Maximum depth of cut range0.1500 to 0.2000
Measurement typeMetric
Msc manufacturer numberNG3125R/L
Multi use toolNo
RakeNeutral
