Kennametal

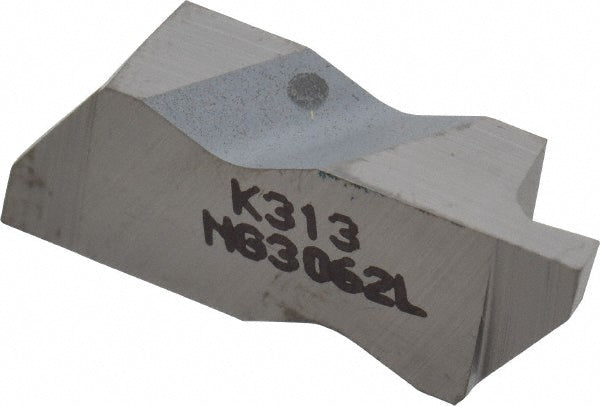

Carbide Insert, Grade K313 - Kennametal 1113266
MFR# 1113266Series Top Notch
$33.11List $40.41
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeK313
MaterialCarbide
Description
The Kennametal 1113266 is a carbide indexable insert, grade K313.
Specifications
Corner radius0.0075
Cutting width0.0622
Full radiusNo
Included angle degree55
Insert handLeft Hand
Insert materialCarbide
Insert size3062
Insert styleNG
Lead angle3
Manufacturer gradeK313
Material gradeC3; C4
Maximum depth of cut0.0941
Maximum depth of cut range0.0750 to 0.1000
Measurement typeMetric
Multi use toolNo
RakeNeutral
